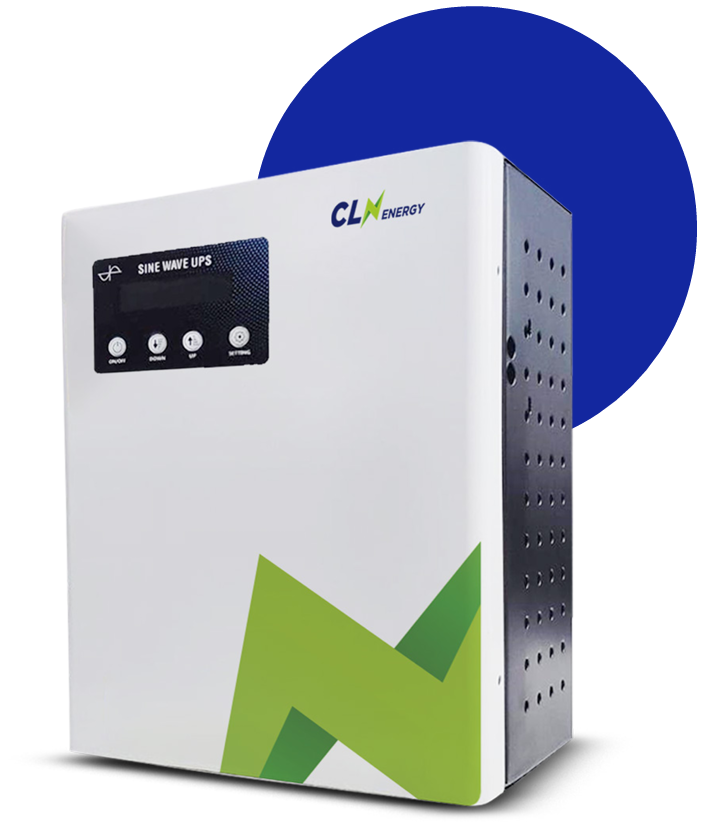

All-in-one Wall Mount
All in one solution
The all-in-one residential energy storage solution (ESS) delivers seamless and intelligent power management for modern
homes. Engineered for exceptional reliability and performance, it combines a hybrid inverter, scalable lithium iron
phosphate (LiFePO4) battery technology, and advanced energy optimization features into a single, integrated system.
KEY FEATURES
Integrated solution
All-in-one design with hybrid inverter and modular battery storage.
Life Cycle
3000+ charge cycles with a 5-year warranty.
Superior durability & safety
Supports peak shaving, scheduled charging, and other grid services using safe, long lasting lithium iron phosphate (LFP) battery chemistry.
Installation
Wall-mounted or tabletop configuration for flexible setup and reliable backup power during outages.
Technical Specifications
| Parameter | 900VA/12.8V (WM) | 1100VA/12.8V (WM) | 1600VA/25.6V (WM) | 2000VA/25.6V (WM) |
|---|---|---|---|---|
| Nominal DC Voltage | 12.8 | 12.8 | 25.6 | 25.6 |
| MPPT Charger | ||||
| Type of Charger | MPPT | |||
| No of MPPT Channels | 1 | |||
| Max. Connected PV Modules kW | 1 | 1 | 2 | 2 |
| Max MPPT Output Current / Max Battery Charging Current (A) | 55 | |||
| Max. Open Circuit PV Voltage (V) | 50 | 50 | 100 | 100 |
| MPPT Voltage Range (V) | 30–50 | 30–50 | 40–100 | 40–100 |
| MPPT Peak Efficiency | >92% | |||
| Solar Inverter | ||||
| Input Power at Peak Load (W) | 900 | 1100 | 1600 | 2000 |
| Nominal Output Voltage (V) | 220 | |||
| Nominal Output Frequency (Hz) | 50 | |||
| Output Supply Phase | Single Phase | |||
| Overloads | 100–105% – 60Sec / 105–110% – 30Sec / 110–120% – 2 Sec | |||
| Output Type | Pure Sine Wave | |||
| Input Source | PV/Battery/Grid | |||
| Peak Inverter Efficiency | >82% | |||
| THD | >4% | |||
| Load Power Factor | 0.8 | |||
| Battery | ||||
| Battery (Ah)/(Voltage V) | 100/12.8 | 100/12.8 | 100/25.6 | 100/25.6 |
| Battery (Wh) | 1280 | 1280 | 2560 | 2560 |
| Charging Current (A) | 30 | |||
| Discharging Current (A) | 50 | |||
| Max Continuous Discharging Current (A) | 100 | |||
| Battery Under Cut Alarm (V) | 24.2 (Settable) | |||
| Battery Under Cut (V) | 24 (Settable) | |||
| Float Charging Voltage (V) | 28.8 | |||
| Boost Charging Voltage (V) | 28.8 | |||
| Grid Charger | ||||
| Grid Operating Voltage Range (V) | 90–280 | |||
| Grid Frequency Range | 47–53 | |||
| Display/Indication | ||||
| Protections | PV – Reverse Polarity, High Current | |||
| Display Parameters | PV: Voltage, Amps, Power, Today KWH, Total KWH Generation. | |||
| Display Faults | PV: PV Over Voltage | |||
| Others | ||||
| Operating Temp (°C) | 0–50 | |||
| Humidity | 0.9 | |||
| Degree of Protection | IP31 | |||
| Cooling Method | Temp. Controlled FAN | |||
| Dimensions (LWH) and Weight | 440x380x160MM /25Kg Approx | 440x380x160MM /25Kg Approx | 570x440x220MM /41Kg Approx | 570x440x220MM /41Kg Approx |
