CE-2073

AC/DC integrated machine
Celestial Energy-2073-0.5C

Application Field:

  • Post-meter electricity market, peak-valley arbitrage and backup power supply of C&I (commercial and industrial) energy storage on the customer side.
  • Peak shaving and valley filling for smooth output of wind and solar new energy power stations.
  • Grid frequency regulation and peak load regulation in the pre-meter electricity market, as well as capacity expansion of distribution network transformers.
Responsive Table with Custom First Column Width

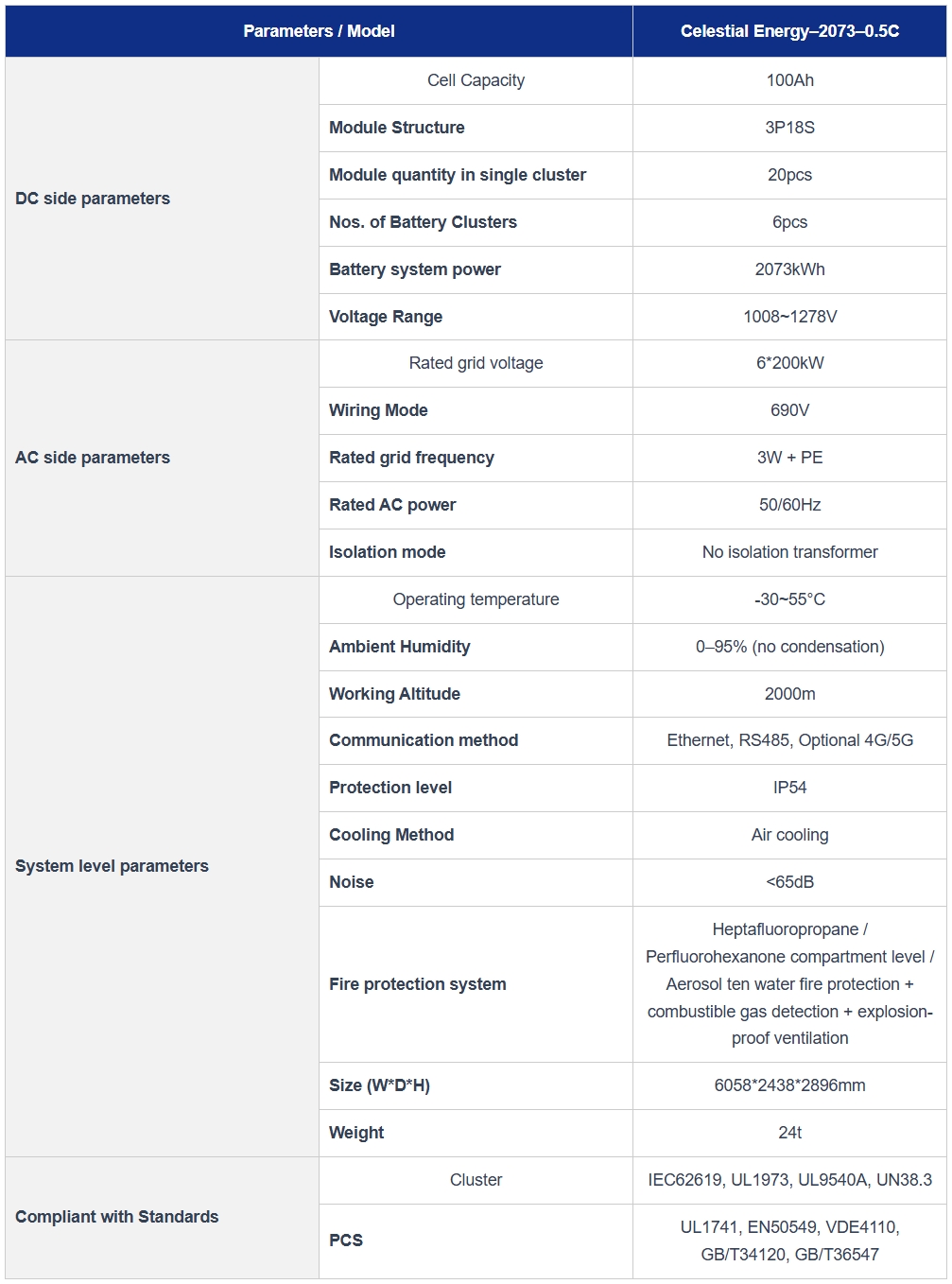

Parameters / Model Celestial Energy–2073–0.5C
DC side parameters Cell Capacity 100Ah
Module Structure3P18S
Module quantity in single cluster20pcs
Nos. of Battery Clusters6pcs
Battery system power2073kWh
Voltage Range1008~1278V
AC side parameters Rated grid voltage 6*200kW
Wiring Mode690V
Rated grid frequency3W + PE
Rated AC power50/60Hz
Isolation modeNo isolation transformer
System level parameters Operating temperature-30~55°C
Ambient Humidity0–95% (no condensation)
Working Altitude2000m
Communication methodEthernet, RS485, Optional 4G/5G
Protection levelIP54
Cooling MethodAir cooling
Noise<65dB
Fire protection systemHeptafluoropropane / Perfluorohexanone compartment level / Aerosol ten water fire protection + combustible gas detection + explosion-proof ventilation
Size (W*D*H)6058*2438*2896mm
Weight24t
Compliant with Standards ClusterIEC62619, UL1973, UL9540A, UN38.3
PCSUL1741, EN50549, VDE4110, GB/T34120, GB/T36547
