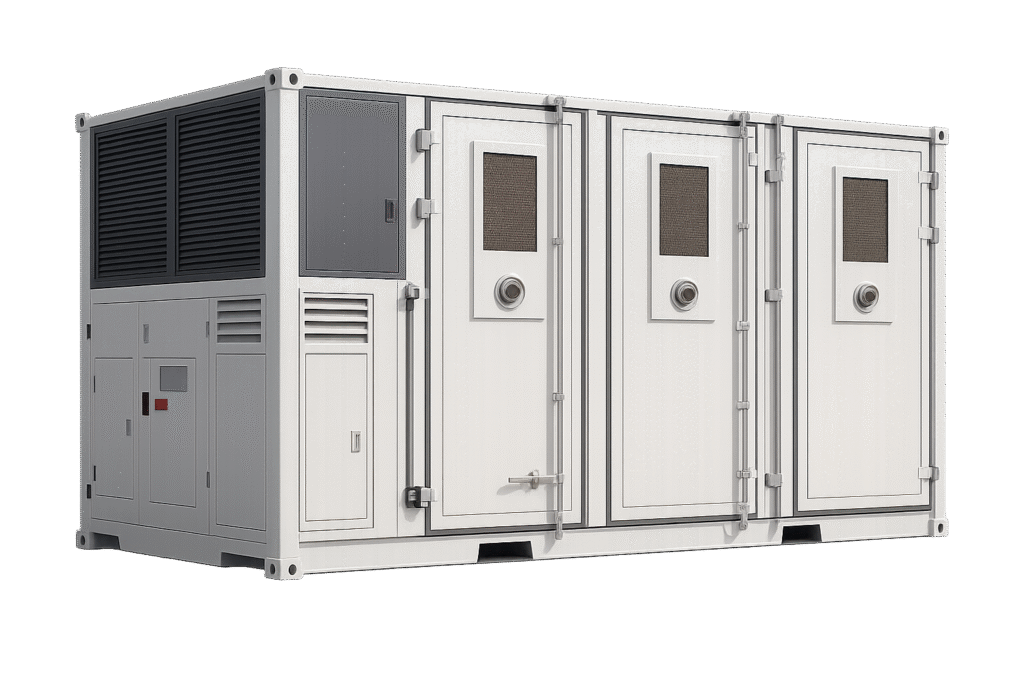

CE-3340
AC/DC integrated machine
Celestial Energy-3340-0.5C
Application Field:
- Post-meter electricity market, peak-valley arbitrage and backup power supply of C&I (commercial and industrial) energy storage on the customer side.
- Peak shaving and valley filling for smooth output of wind and solar new energy power stations.
- Grid frequency regulation and peak load regulation in the pre-meter electricity market, as well as capacity expansion of distribution network transformers.

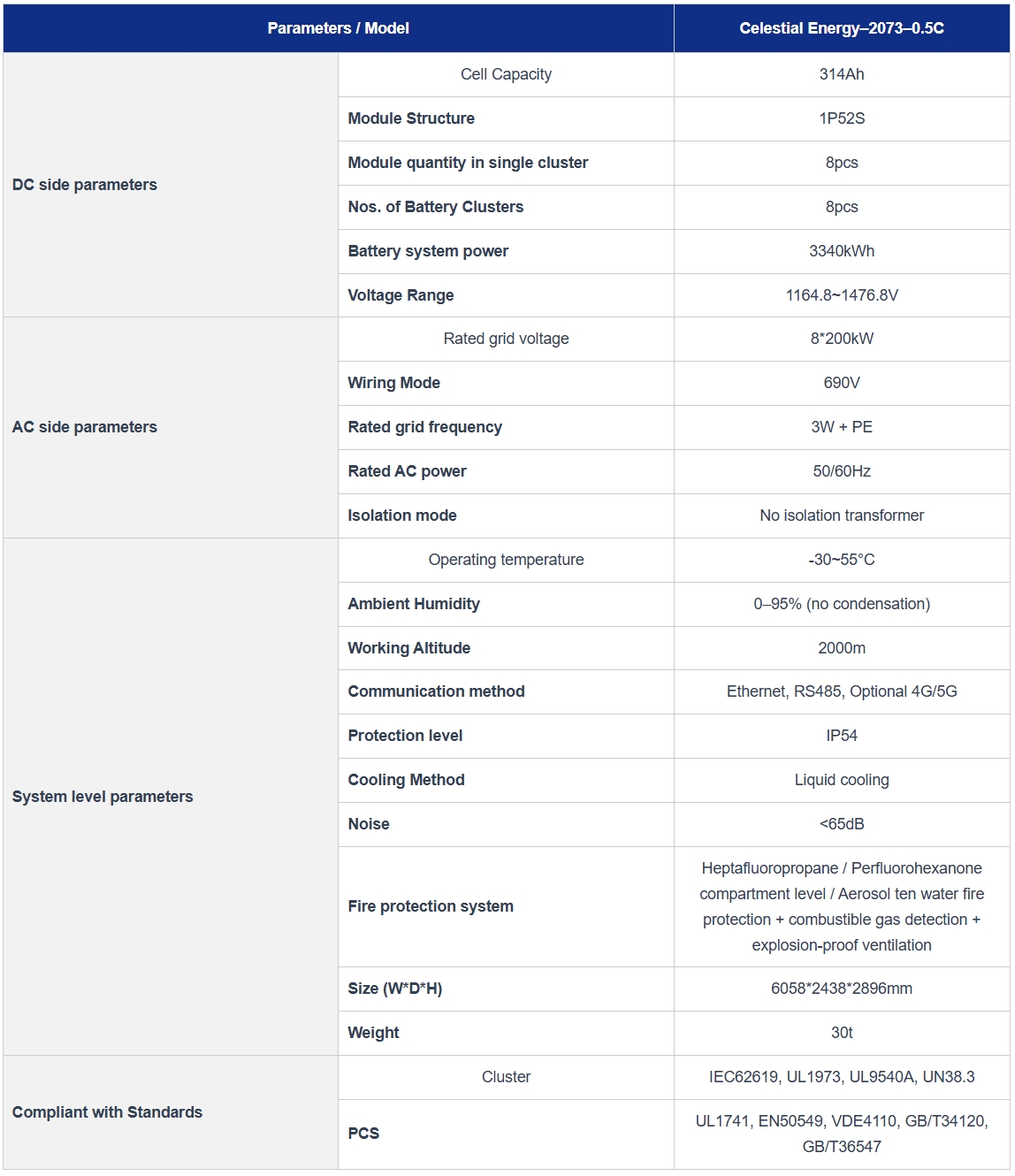

| Parameters / Model | Celestial Energy–2073–0.5C | |
|---|---|---|
| DC side parameters | Cell Capacity | 314Ah |
| Module Structure | 1P52S | |
| Module quantity in single cluster | 8pcs | |
| Nos. of Battery Clusters | 8pcs | |
| Battery system power | 3340kWh | |
| Voltage Range | 1164.8~1476.8V | |
| AC side parameters | Rated grid voltage | 8*200kW |
| Wiring Mode | 690V | |
| Rated grid frequency | 3W + PE | |
| Rated AC power | 50/60Hz | |
| Isolation mode | No isolation transformer | |
| System level parameters | Operating temperature | -30~55°C |
| Ambient Humidity | 0–95% (no condensation) | |
| Working Altitude | 2000m | |
| Communication method | Ethernet, RS485, Optional 4G/5G | |
| Protection level | IP54 | |
| Cooling Method | Liquid cooling | |
| Noise | <65dB | |
| Fire protection system | Heptafluoropropane / Perfluorohexanone compartment level / Aerosol ten water fire protection + combustible gas detection + explosion-proof ventilation | |
| Size (W*D*H) | 6058*2438*2896mm | |
| Weight | 30t | |
| Compliant with Standards | Cluster | IEC62619, UL1973, UL9540A, UN38.3 |
| PCS | UL1741, EN50549, VDE4110, GB/T34120, GB/T36547 | |
