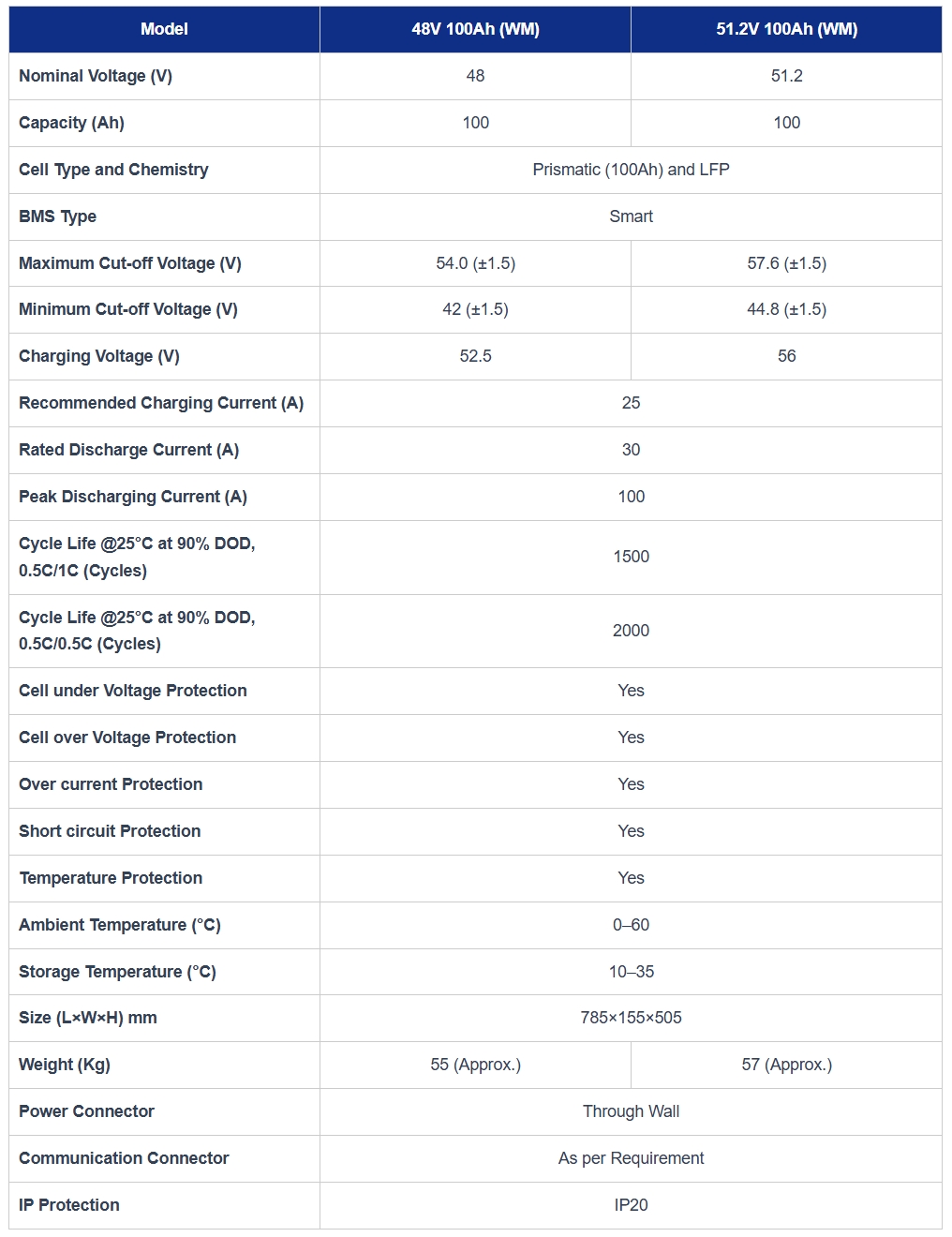

| Model |
48V 100Ah (WM) |
51.2V 100Ah (WM) |
| Nominal Voltage (V) | 48 | 51.2 |
| Capacity (Ah) | 100 | 100 |
| Cell Type and Chemistry | Prismatic (100Ah) and LFP |
| BMS Type | Smart |
| Maximum Cut-off Voltage (V) | 54.0 (±1.5) | 57.6 (±1.5) |
| Minimum Cut-off Voltage (V) | 42 (±1.5) | 44.8 (±1.5) |
| Charging Voltage (V) | 52.5 | 56 |
| Recommended Charging Current (A) | 25 |
| Rated Discharge Current (A) | 30 |
| Peak Discharging Current (A) | 100 |
| Cycle Life @25°C at 90% DOD, 0.5C/1C (Cycles) | 1500 |
| Cycle Life @25°C at 90% DOD, 0.5C/0.5C (Cycles) | 2000 |
| Cell under Voltage Protection | Yes |
| Cell over Voltage Protection | Yes |
| Over current Protection | Yes |
| Short circuit Protection | Yes |
| Temperature Protection | Yes |
| Ambient Temperature (°C) | 0–60 |
| Storage Temperature (°C) | 10–35 |
| Size (L×W×H) mm | 785×155×505 |
| Weight (Kg) | 55 (Approx.) | 57 (Approx.) |
| Power Connector | Through Wall |
| Communication Connector | As per Requirement |
| IP Protection | IP20 |
