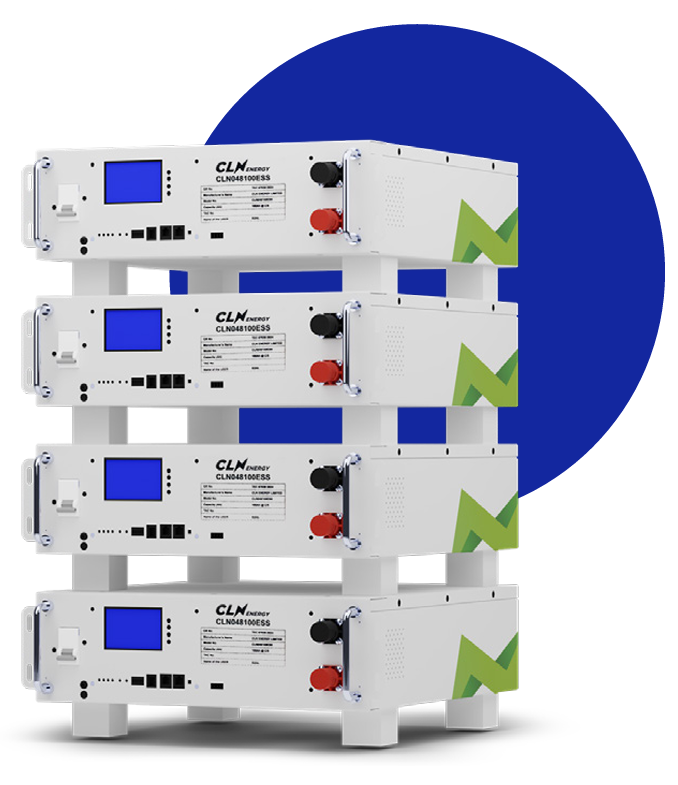

Stackable BESS
Stackable lithium-ion energy storage system designed for residential backup and solar applications.
Supports up to 4 modules (20.48 kWh), with integrated EMS and optional off-grid inverter ( also available with and
without inverter). Offers multiple operating modes, remote monitoring via app, and advanced protection features. Easy
to install, safe, and maintenance-free.
KEY FEATURES
- Modular and Scalable : Stack up to 4 modules – from 5.12 kWh to 20.48 kWh total capacity
- Safe and Long-lasting : Uses advanced cobalt-free LiFePO4 cells with 3000+ cycles @ 80% DoD
- Smart Energy Management : Integrated EMS supports multiple operation modes: PV priority, grid priority, or inverter priority
- Remote Monitoring : Monitor system performance via Android App or integrated display
- Advanced Communication : Equipped with RS485/CAN for inverter and BMS communication
- Built-in Battery Protections : Automatic safety features: over/under voltage, temperature, current, and short-circuit protection
- Plug-and-Play Design : Pre-configured for quick installation and reduced maintenance time
- Wide Temperature Range : Reliable operation from 0°C to 60°C with natural/forced/HVAC cooling options
- Certified Quality : Compliant with global standards: UN38.3, IEC 62619, IEC 61000, UL 1973
- Eco-Friendly Chemistry : Non-toxic, non-hazardous, and fully recyclable LiFePO4 cells

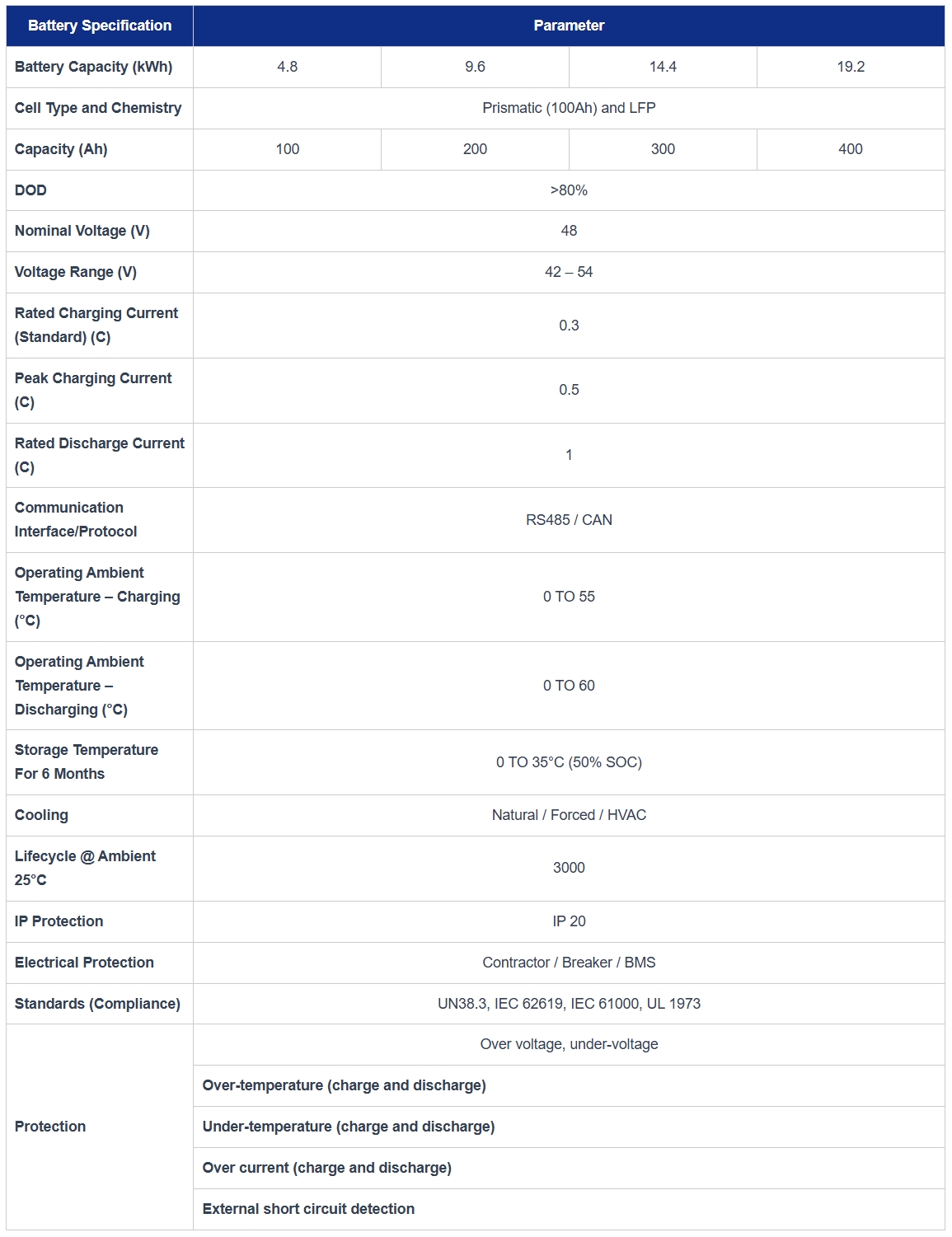

Technical Specifications
| Battery Specification | Parameter | |||
|---|---|---|---|---|
| Battery Capacity (kWh) | 4.8 | 9.6 | 14.4 | 19.2 |
| Cell Type and Chemistry | Prismatic (100Ah) and LFP | |||
| Capacity (Ah) | 100 | 200 | 300 | 400 |
| DOD | >80% | |||
| Nominal Voltage (V) | 48 | |||
| Voltage Range (V) | 42 – 54 | |||
| Rated Charging Current (Standard) (C) | 0.3 | |||
| Peak Charging Current (C) | 0.5 | |||
| Rated Discharge Current (C) | 1 | |||
| Communication Interface/Protocol | RS485 / CAN | |||
| Operating Ambient Temperature – Charging (°C) | 0 TO 55 | |||
| Operating Ambient Temperature – Discharging (°C) | 0 TO 60 | |||
| Storage Temperature For 6 Months | 0 TO 35°C (50% SOC) | |||
| Cooling | Natural / Forced / HVAC | |||
| Lifecycle @ Ambient 25°C | 3000 | |||
| IP Protection | IP 20 | |||
| Electrical Protection | Contractor / Breaker / BMS | |||
| Standards (Compliance) | UN38.3, IEC 62619, IEC 61000, UL 1973 | |||
| Protection | Over voltage, under-voltage | |||
| Over-temperature (charge and discharge) | ||||
| Under-temperature (charge and discharge) | ||||
| Over current (charge and discharge) | ||||
| External short circuit detection | ||||
